Planishing Hammer & Pullmax Dies


CNC Machined from High Grade Tool Steel &
Hardened to an exact Hardness (our own trade secret!)

They provide outstanding hardness for hammering over the hardest of welds & also provide wonderful wear
resistance, while not being too hard, which can cause them to be brittle and prone to chipping.

They will provide a lifetime of use without need for replacement.
Die Radius shown in picture from Left to Right
Back Row: Flat, 6", 4"
Front Row: 2", 1", 3/4"

Lower Die Anvils
Please Select..........
Please Select..........
1" Shank Lower Dies
13/16" Shank Lower Dies
Like our Products or
Services?
Post comments/pictures on
our Facebook page!
Then "Like" and Share
with your Friends!
Regular Stock

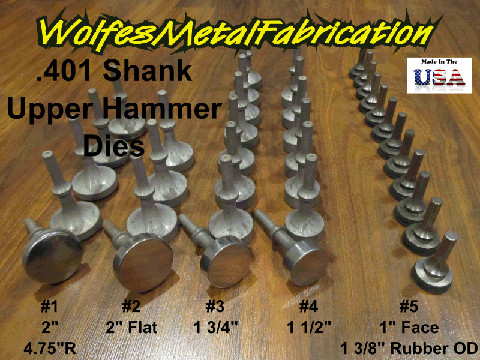

#1-#4 allow standard spring retention and are our dies
exclusively.

      #1.  2" Face with 4 3/4" Radius Curved Face
      #2.  2" Face
      #3.  1 3/4" Face
      #4.  1 1/2" Face
      #5.  1" Face with 1 3/8" OD Rubber Edge

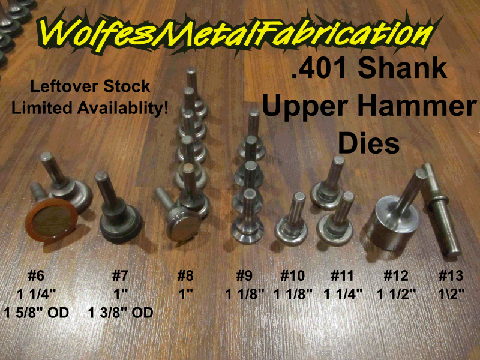

Limited Availability Leftover Stock

    #6.  1 1/4" Face with 1 5/8" OD Rubber Edge
    #7.  1" Face with 1 3/8" OD Rubber Edge
    #8.  1" Face (missing rubber)
    #9.  1 1/8" Face
    #10.  1 1/8" Face
    #11.  1 1/4" Face
    #12.  1 1/2" Face (oversized)
    #13.  1/2" Face (slightly under)
.401" Shank Planishing Hammer
Upper Hammer Head Dies

Made to fit standard .401" shank air hammer motors.
#1-#4 and #13 allow standard spring retention.
  • 1 1/2" Diameter Face
  • 1 1/2" Total Length of Die (3/4" upper, 3/4" lower)

  • .980 Shank (made to fit inside standard 1 1/2" OD, 1/4" Wall DOM Tubing)
             OR
  • 13/16 Shank (Common Standard Size)

  • CNC Machined Heat Treated Alloy Tool Steel
  • Manufactured Totally in Nebraska, !Made in USA!

If you would like a different radius, or different shank size, contact us for a quote.
.401 Upper Hammer Heads
Clearance Upper Hammer Heads
401 Shank Upper Dies
401 Shank Upper Dies (Clearance)
